install iATKOS L2 on VirtualBox Windows 7 & Ubuntu Quantal

1:52 PM Posted by wardah kaddihani , , , , , 6 comments

Greetings! i just tried to install iATKOS L2 on VirtualBox. OK Here we go.

Requirement
- iATKOS L2 installation image
- Oracle VirtualBox [download]

Tested on
Oracle VirtualBox 4.1; Windows 7 64bit;
Oracle VirtualBox 4.2; Ubuntu 12.10 64 bit;
Oracle VirtualBox 4.3; Linux Mint 13 64 bit;
Intel I3; 8GB RAM

Installation Steps
1. Restart your PC and enter BIOS mode by pressing key to enter setup (may differ for each computer. Lenovo use F2 key)

2. Enable Intel Virtualization Technology (Needed for multi virtual CPU and acceleration using VT-x/AMD-x)

3. After reboot, create new Guest OS on VirtualBox and choose MAC OS X server
4. Allocate RAM (min 1024 MB)

5. Skip Virtual Hard Disk for now by unchecking Start-up disk. Just ignore the warning
6. Tune up other settings
     - System
        * Motherboard
            # check enable : IO APIC;
            # uncheck enable : EFI;
        * Processor
            # allocate 1 or more virtual CPU depend on physical processor capability
            # check enable : PAE/NX
        * Acceleration
            # check enable : VT-x/AMD-x; nested paging
    - Display
        * allocate video memory 128 MB
        * check enable 3D acceleration
    - Storage
        * IDE Controller (type ICH6)
            # IDE Primary Master
                + add new HardDisk
                + choose vdi format or choose vmdk format(compatible with VMware)
                + allocate space min 15 GB and create
            # IDE Secondary Master
                + click Empty Disk
                + choose a virtual CD/DVD disk file
                + load iATKOS L2 image














- Let the rest as it is
        * in my case, i disable sound because of some reason

7. Start the guest OS

8. Choose installation language
9. Open Disk Utility
10. Create a Clear Partition. Use Erase (Format)
11. Continue the installation

12. Install it to our previous partition
13. Wait for a few minute until installation done (i missed the done page -_- oh well)

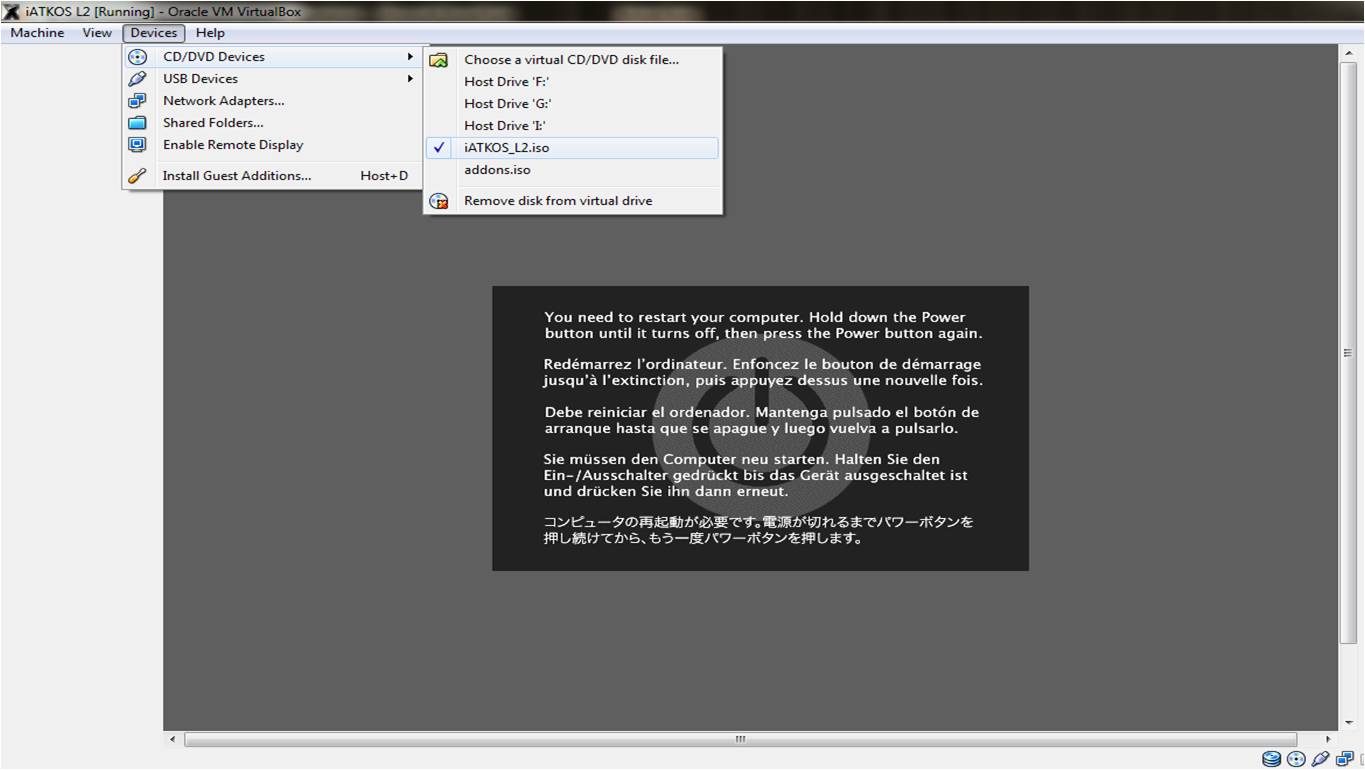

14. when you see this page (result of shutdown or restarting the virtual iATKOS) just Reset the VirtualBox. don't forget to UNMOUNT the installation image.

15. if the installation disc still remain in the CD/DVD storage we need to press F8 to enter boot option before the time bar runs out. and then choose the formated partition using arrow key and enter/return.

































16. Finishing installation. we can skip some page but make sure to make one computer account and password for log in





























17. After log in, you maybe asked for keyboard configuration. Just follow the step to press the key beside the Shift key


















18. Launch System Preferences and click Boot Loader (bottom most cameleon)



















19. choose startup disk or default boot partition with clicking it and check it in boot setup





































20. you can also set the boot timeout.  in case you don't want iATKOS to wait for bootable media and immediately boot to your primary drive, set it to 1 sec

















21. Shutdown. Unmount the installation image and reset VirtualBox
















22. It's all done! the rest is up to you













Other Issues
works!
- NAT connection
- CD/DVD load*
- USB*
* try to load device from VirtualBox devices menu. CD/DVD device can be set from OS storage settings

untested**
- shared host folder (read [3])
- audio
**check the references for more info

References

done for learning purpose only. Try it at your own risk :P
